Rackmount Telecom
DC-AC Inverters
These rackmount telecom DC-AC power inverters provide seamless back-up power for AC powered communications equipment from the site’s 48V or 24V DC battery system. A fast-acting transfer switch ensures voice and data transmissions remain uninterrupted in the event of a power grid failure or if the site utility power is disconnected for maintenance and upgrade purposes. Built in a 2RU case adaptable for 19” and 23” rack installations.
Features
- Pure sine wave AC output powers telecom equipment without performance degradation
- Continuous duty rated – full output wattage maintained even during extended power outages
- 1000 VA and 2000 VA models available – easily cascaded for N+1 redundancy, providing maximum reliability
required by data centers - Low EMI and RFI interference characteristics
- User-friendly Status and Diagnostic LCD/LED displays
- Utility bypass function with fast load transfer switch
- Remote Power Management optional via RS-232 port
- Optional SNMP card
- Numerous circuit and load protections – over-current, over- temp, overload, reverse polarity, high/low battery
voltage - Form C alarm contacts for monitoring AC “Fault” and “DC Abnormal” conditions
- Adapts for 19” or 23” racks; occupies only 2 RU (3.5”)
- UL and cUL listed, CE marked, and RoHS Compliant
Specifications: Rackmount Telecom Inverters – 2RU Series
| Model | DC Input | AC Output | Weight(lbs.) | |||
|---|---|---|---|---|---|---|
| Voltage | Amps | Voltage | KVA | Watts | ||
| 24-1000RM | 20-30 | 50 | 115 VAC, 60 Hz. | 1 KVA | 800 | 15.4 |
| 48-1000RM | 40-60 | 25 | 115 VAC, 60 Hz. | 1 KVA | 800 | 15.4 |
| 48-1000IRM† | 40-60 | 25 | 230 VAC, 50 Hz.** | 1 KVA | 800 | 15.4 |
| 48-2000RM | 40-60 | 50 | 115 VAC, 60 Hz. | 2 KVA | 1600 | 17.6 |
| 48-2000IRM† | 40-60 | 50 | 230 VAC, 50 Hz.** | 2 KVA | 1600 | 17.6 |
| 125-1000RM† | 100-150 | 10 | 115 VAC, 60 Hz. | 1 KVA | 800 | 15.4 |
| 125-2000RM† | 100-150 | 20 | 115 VAC, 60 Hz. | 2 KVA | 1600 | 17.6 |
*I series models use IEC type AC output connector
** Adjustable for 60 Hz.
† Special Order – Contact Factory
AC Characteristics
Voltage: 100/110/115/120 VAC (selectable using RS-232 port and additional software); Factory set at 115 VAC
Frequency: 60 Hz. Standard, 50 Hz. Optional
Regulation: +/- 2%
Wave Form: Pure Sine
Outlets Rear Panel:
24-1000RM and 48-1000RM – (4 ea.) NEMA 5-15R
48-2000RM – (4 ea.) NEMA 5-20R
Total Harmonic Distortion: 6% 120V/100% linear load 4% 120V/100% SPS load
Transfer Time: <4 ms.
Displays
LED: Inverter On, Overload, DC Abnormal, Fault
LCD: Inverter On, Output Voltage and Frequency, Input Voltage, Load Percentage, DC Voltage, System Model,
Internal Environment Temperature, Utility Status, Short Circuit, Over Temperature
Operating Temperature: 0° to 45° C
Cooling: Forced air, front-to-back
Humidity: 0-90% relative humidity
Acoustic Noise: 46 dBA @ 1 M
Alarms
Form C (Dry Contact) terminals (two sets – “DC ABNORMAL” and “FAULT”)
Communication Interface
RS-232 port, serial cable included
Protection Features
DC Input Fuse and Breaker, AC Input Breaker, Output Breaker, Short Circuit, Overload, Over
Temperature, Over/Under Output Voltage, Over/Under Input Voltage, Fan Failure Detection
Compliance
UL and cUL listed, CE marked, and RoHS Compliant
Mechanical
Dimensions: 17.4”W x 3.5”H x 11.6”D
Mounting: 19” or 23” Rack
Weight: 24-1000RM and 48-1000RM – 15.4 Lbs., 48-2000RM – 17.6 Lbs.

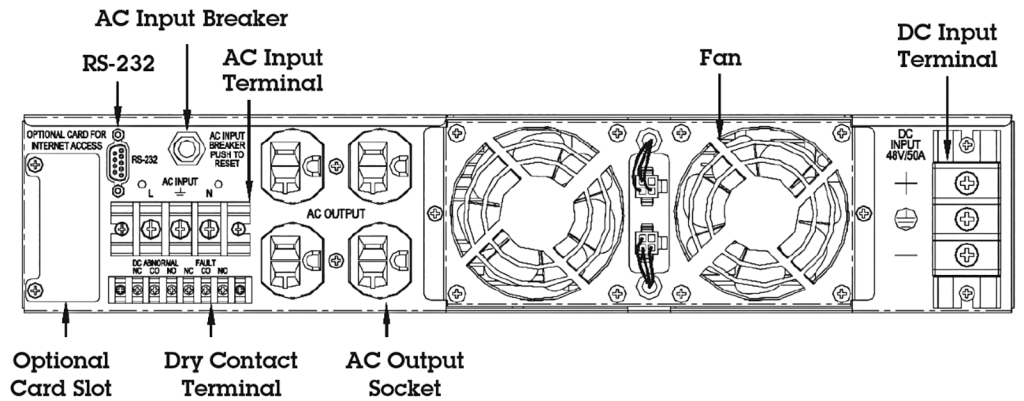

Rear View
Options
Remote monitor via RS 232 port. SNMP card required.
