Battery Disconnect Panels



BDP-1

  • Provides over-current protection in high current battery wiring applications
  • Provides a convenient means of disconnecting batteries from power plant during servicing
  • High current single pole breaker is mounted into 2UR rackmount panel
  • Auxiliary contacts (form C) provide tripped breaker signal to power plant monitor
  • Adapts for 19″ racks
  • Voltage Rating: 12, 24 or 48 VDC



Model Battery Strings Available Amperage
BDP-1 1 50, 75, 100
BDP-2 2 50, 75, 100
BDP-125 1 125
BDP-150 1 150
BDP-175 1 175
BDP-200 1 200
BDP-225 1 225
BDP-250 1 250
BDP-275 1 275
BDP-300 1 300
BDP-350 1 350
BDP-400 1 400

Rack Mount Battery Strings in a rack for telecom, broadband, public safety, and Industrial applications by Newmar Powering the Network

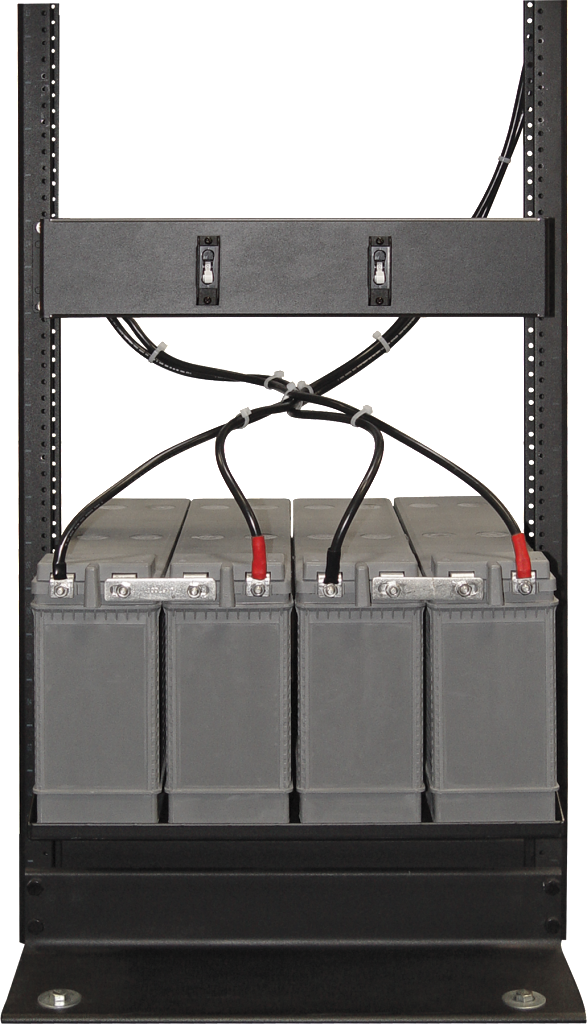

BDP-2 wired for 24V application


We can supply your battery requirements, click here for battery information.

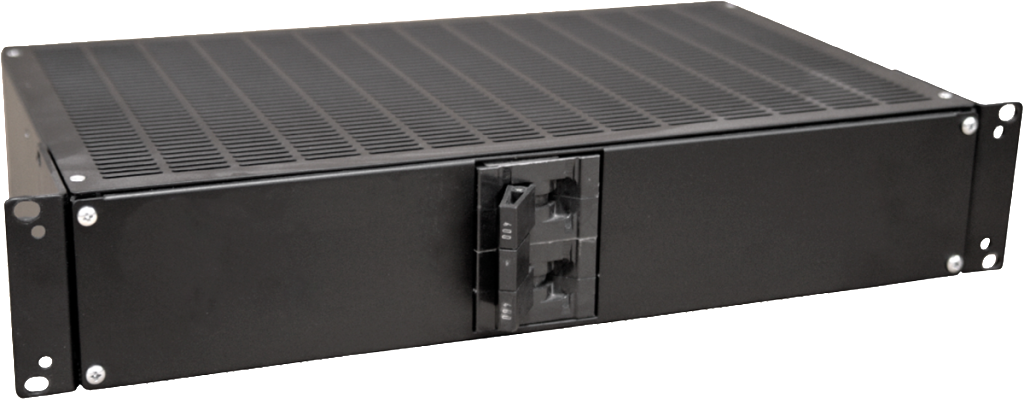

Battery_Disconnect_Panel_2

125 to 400 Amp panels available by special order contact factory
