DC Power Enclosures for Battery Back-up for Public Safety, PE Large Series, 48V DC and 120V AC output with 185 - 600 Amp-Hour Back-Up by Newmar Powering the Network

PE Series - Higher Power


Public Safety/BDA In-Building Coverage

An integral part of an in-building solution for emergency response radio coverage is the backup power system. NFPA codes relating to the autonomous operation and monitoring of the BDA power is quite stringent. These back up power enclosures were engineered to meet every aspect of NFPA 1221 and provide integrators configuration flexibility and rapid delivery directly to site, batteries included.


Features
• NFPA compliant
    • All required monitoring alarms
• Batteries included
    • Choose capacity to match system requirements
• NEMA-4 UL listed enclosure
• Prewired for easy on-site connections
• Customization to meet local AHJ ‘s requirements


Specifications
Input: 90 - 300V AC, 50/60 Hz.

Outputs:
DC: 48V, with 600 and 1200 Watt DC UPS
AC: 120V at 600 watts - see reverse for detailed specifications

Protections: Battery circuit breaker, DC output circuit breaker, NEMA enclosure, IP65 vents

NFPA 1221 Compliant Alarms (Form C, Dry Contact)
• AC fail
• Battery discharged to 30% of capacity
• Rectifier/Charger fail

Batteries Included: maintenance free, sealed valve regulated, lead acid, 160, 185, 370, and 600 AH capacity

Enclosure Size (H x W x D):
A: 50.23” x 25.5” x 34”
B: 78.23” x 25.5” x 34”

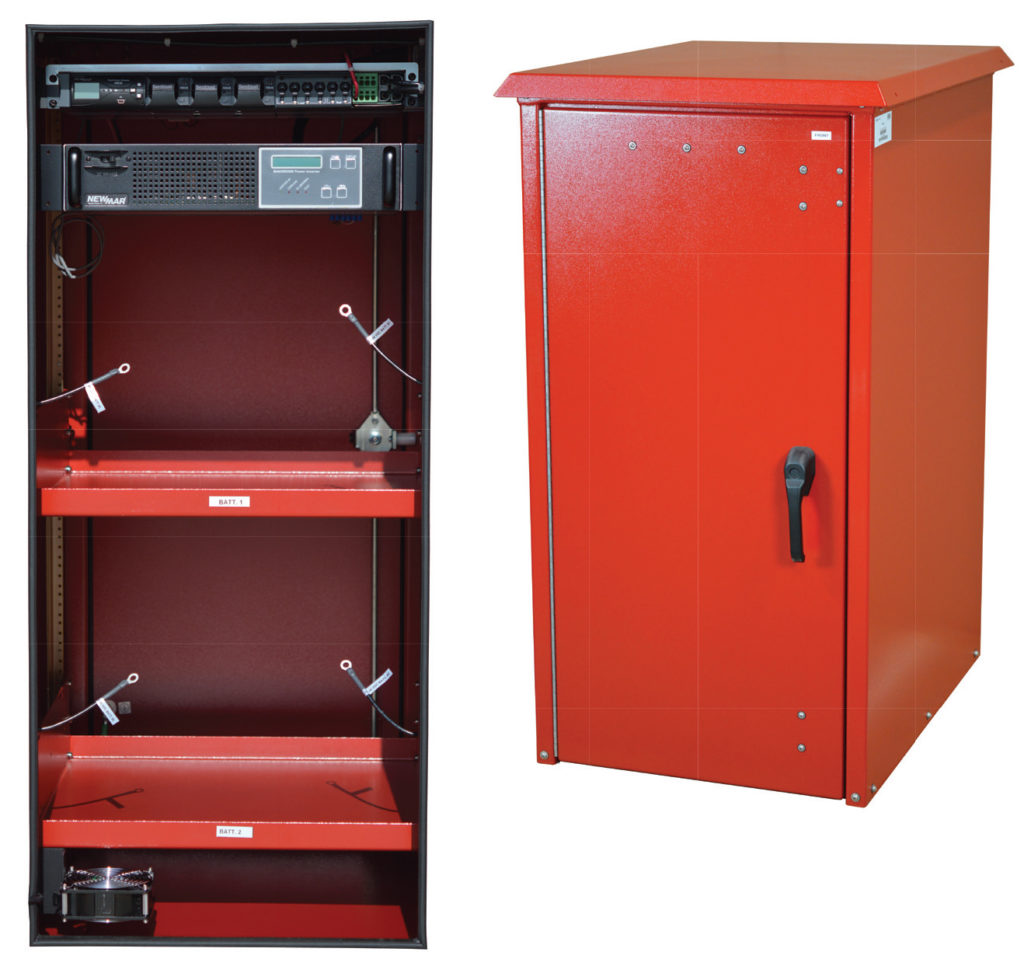

Enclosure A: 50” tall, NEMA-4, UL listed, welded aluminum with IP 65 battery vent and pad lockable door handles. Red powder coat wall mount.
Enclosure B: NEMA-4, UL listed, welded aluminum with IP 65 vent, pad lockable door handles. Red powder coat floor mount.

Included:
Battery string wiring: 8 AWG, two conductor with 5/16” ring battery terminals
Battery string circuit breaker: 30A

Model DC Voltage DC UPS Power Watts Battery A/H Capacity Enclosure Size
PE-48V-350W-200AH 48V DC 350 200 A*
PE-48V-480W-160AH 48V DC 480 160 A*
PE-48V-480W-200AH 48V DC 480 200 A*
PE-48V-600W-185AH 48V DC 600 185 A*
PE-48V-600W-320AH 48V DC 600 320 A*
PE-48V-600W-370AH 48V DC 600 370 A*
PE-48V-700W-280AH 48V DC 700 280 A*
PE-48V-700W-370AH 48V DC 700 370 A*
PE-48V-700W-400AH 48V DC 700 400 A*
PE-48V-1200W-600AH 48V DC 120 100 B
PE-120V-600W-185AH 120V AC 600 185 A*
PE-120V-600W-370AH 120V AC 600 370 A*


* Can be upgraded to larger enclosure, size B

Public Safety DAS Power PE Higher Power Series Enclosure Manual Library

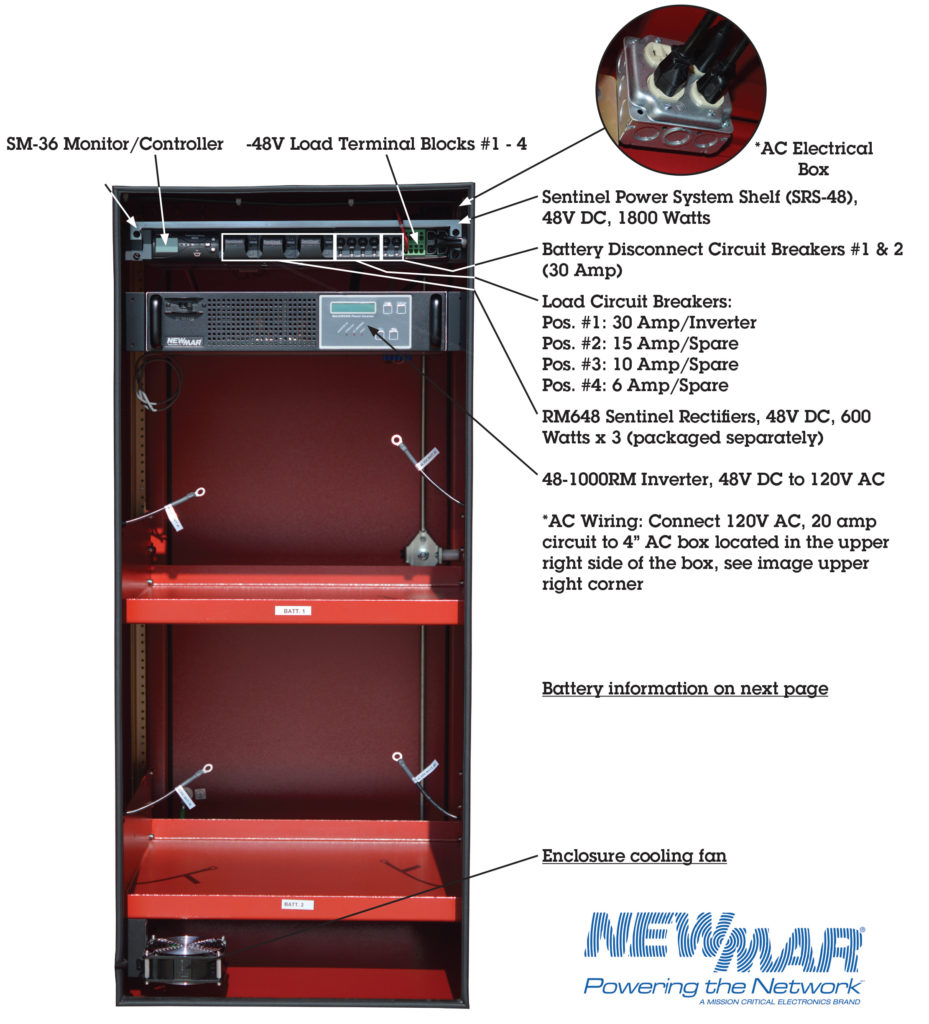

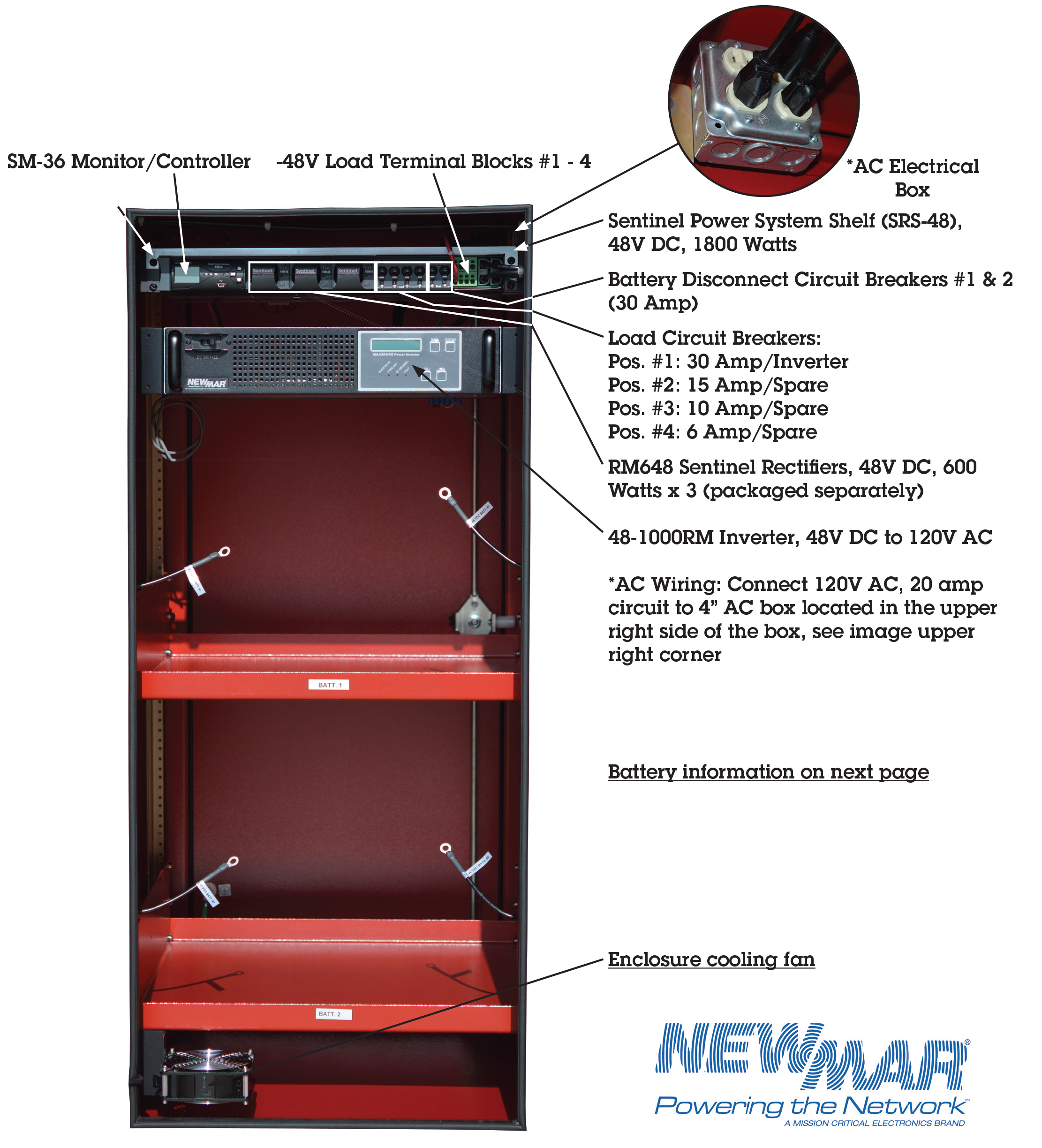

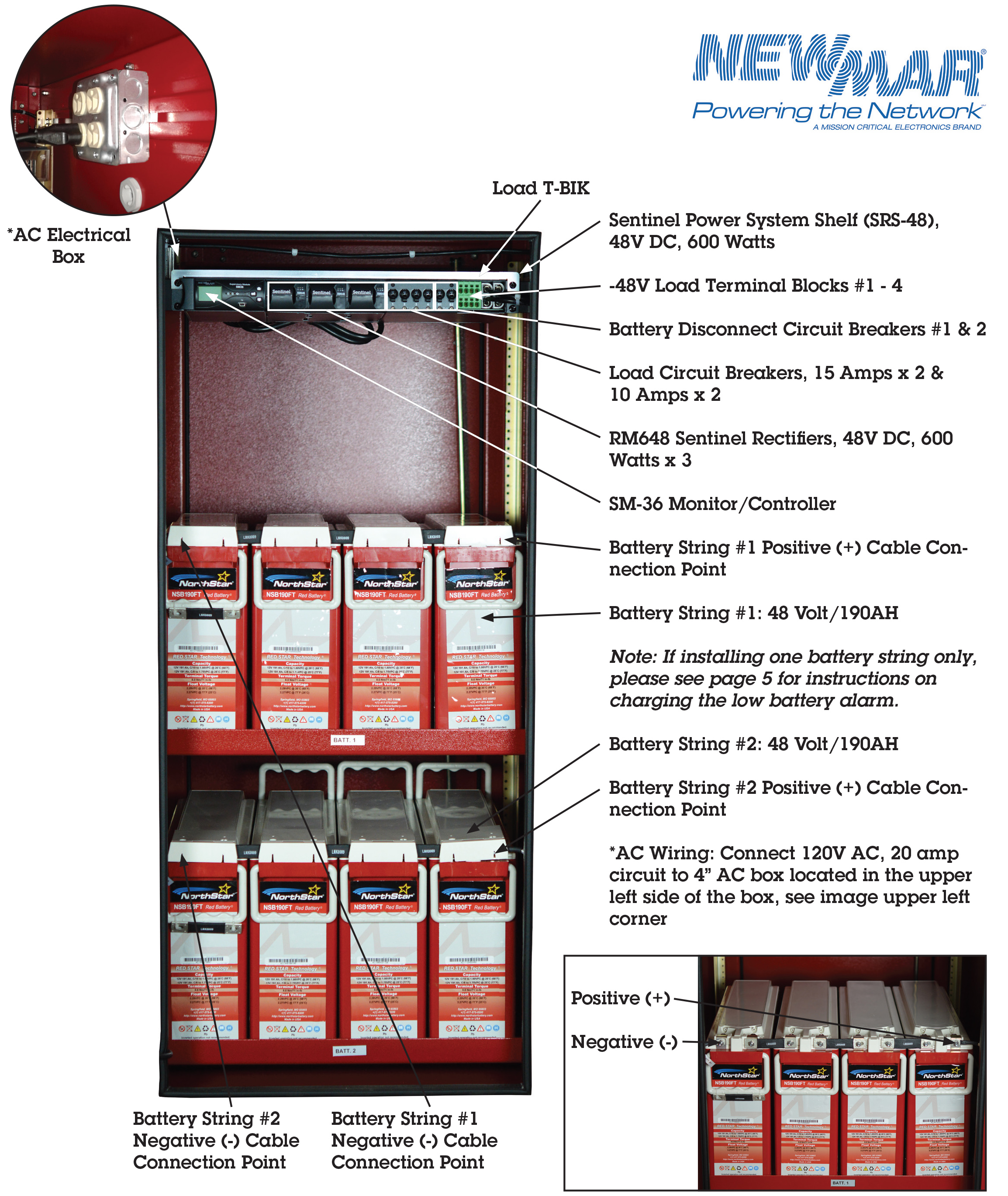

The systems are defined with call-outs of the major features including the Sentinel DC Power System, system input breakers, battery breakers, alarms and batteries.
