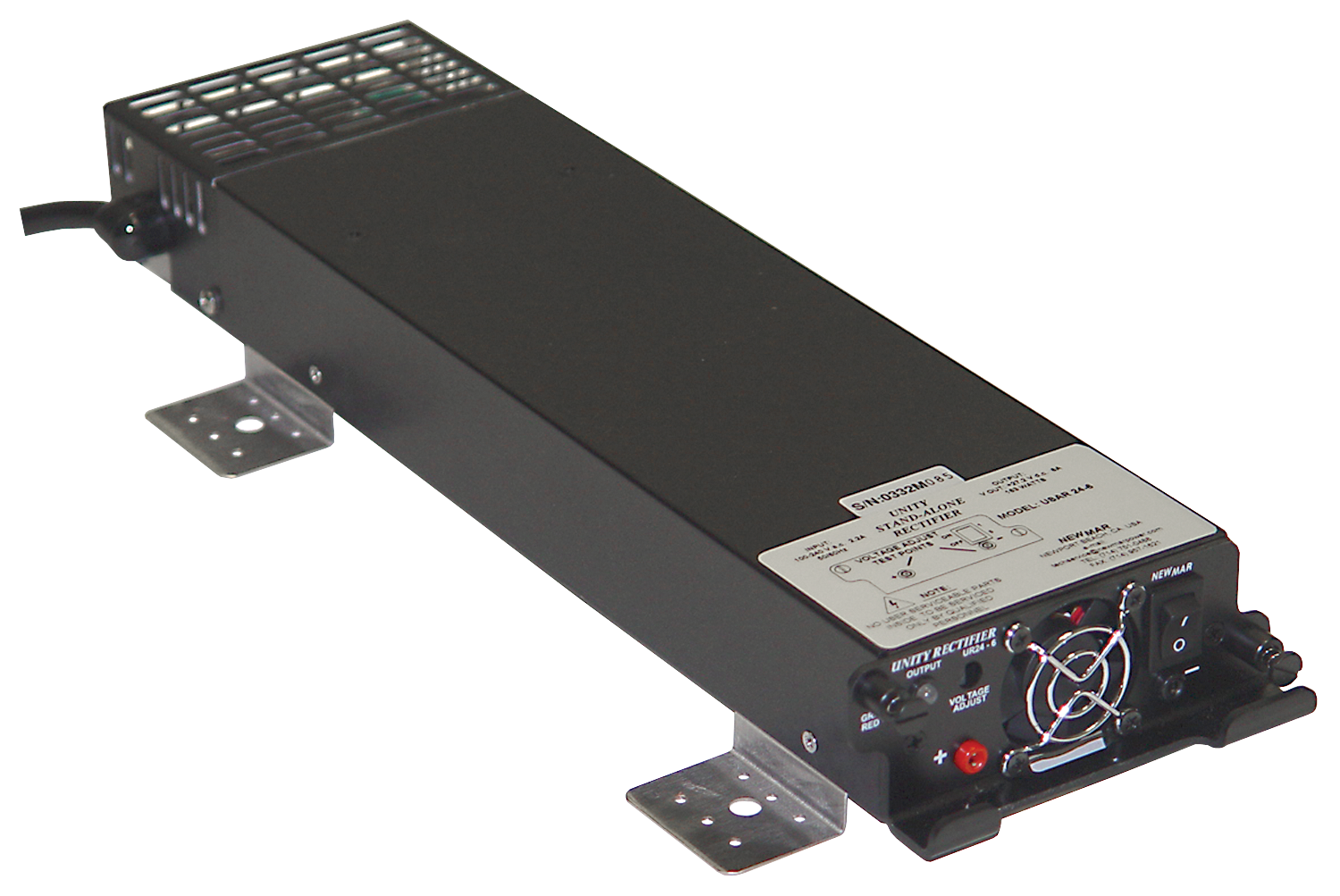

Unity Stand Alone Rectifier

24 & 48 Volt

For applications that do not require rack-mounting or redundancy, the Unity is available as a stand-alone
rectifier. A versatile flange permits a myriad of mounting options, such as on the side of rack rails, inside cabinets, on walls or under shelves, maximizing use of restricted spaces.

A 6′ power cord and a rear-mounted terminal block for easy wiring. Performance specifications are identical to single Unity Rectifiers.


Model Input Output Voltage (Adjustable) Amp Cont. Output Dimensions Weight
USAR48-3 115/230VAC, 50-60HZ -54.4 VDC (42-56) 3 1.75 6.3 12.8 2.8
USAR24-6 115/230VAC, 50-60HZ +27.2 VDC (21-28) 6 1.75 6.3 12.8 2.8
