DC Power Systems

AC-DC

Voltage/Power Range:
120/240 VAC Input
12, 24, or 48 VDC Output
150 Watts – 14 kW

Components: DC Power Systems, Rectifiers, Battery Chargers, Power Modules, Power Supplies, Rack Mount, Wall Mount
Systems: DC Power Systems with Hot Swap Rectifier Shelves and Distribution and Monitoring
Integrated Assemblies: Rack Mount DC Power Systems with batteries


Rack Mount DC Power Systems with Hot Swap Rectifiers




title=

Scout DC Power System

Input: 115/230 VAC
Output: 12 VDC, 1140 – 2400 Watts

The Scout is a compact, high power density 12 volt rack mount DC power system that brings telecom power technology to 12 volt base station radio applications to power transmitters and maintain back-up batteries. Its dual 100 amp hot swap rectifiers configured in N+1 redundancy provides fault tolerant reliability. Remote monitoring capability provides system administrators with operating status.

Learn More About the 12V Scout DC Power System





Rackmount Unity N+1 Redundant Rectifier DC Power System, 24V DC and 48V DC, 150 watts to 450 watts by Newmar Powering the Network

Unity Rectifier DC Power System

Input: 115/230 VAC
Output: 24 or 48 VDC, 150 – 450 Watts

The Unity Rectifier DC Power System comprises a low profile 1.75″ (1 RU) shelf which accommodates up to three 150 watt, -48 or +24 volt hot-swap rectifiers, plus an optional GMT fuse distribution panel. The system is scalable/adaptable for N, N+1 or N+2 configurations. Form C status contacts enable remote alarms for the rectifiers and fuse distribution circuits. Front panel OK/FAIL LED’s allow monitoring status of each rectifier individually. An optional monitor panel with LVD and battery disconnect breaker provides system status and control.

Learn More About the Unity Rectifier DC Power System





Rackmount Sentinel N+1 Redundant Rectifier DC Power System, 48V DC, 600 watts to 1800 Watts fully integrated by Newmar Powering the Network

 Sentinel DC Power System

Input: 115/230 VAC
Output: 48 VDC, 600 – 1800 Watts

Incredible Functionality in a 1 RU DC Power System, 600 to 1800 Watts
with built-in distribution and controller

Learn More About the Sentinel DC Power System





Rackmount Centurion II N+1 Redundant Rectifier DC Power System, 24V DC and 48V DC, 1000 watts to 6000 Watts fully integrated by Newmar Powering the Network

 Centurion II DC Power System

Input: 115/230 VAC
Output: 24 or 48 VDC, 1 kW – 6 kW

Incredible Functionality, Flexibility, and Scalability in a 2 RU DC Power System, 1.0 to 6.0 KW
with built-in distribution and controller

Learn More About the Centurion II DC Power System

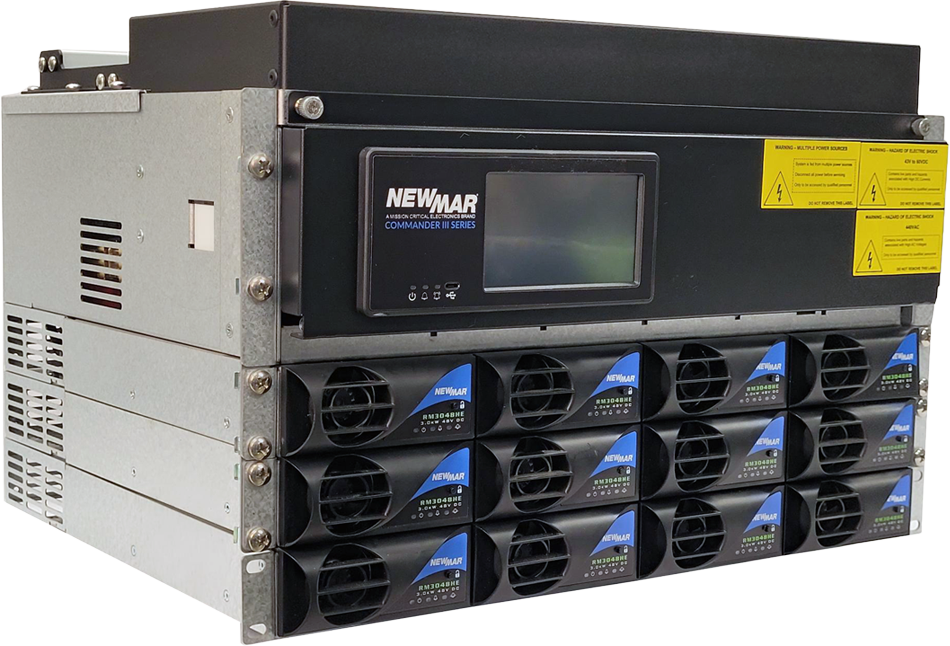

Rackmount Commander N+1 Redundant Rectifier DC Power System, 48V DC, 6000 Watts to 14000 watts fully integrated by Newmar Powering the Network

Commander DC Power System

Input: 115/230 VAC
Output: 48 VDC, 6kW – 14kW

Incredible Functionality, Flexibility, and Scalability in a 5 RU DC Power System, 1.0 to 14.0 KW
with built-in distribution and controller

Learn More About the Commander DC Power System

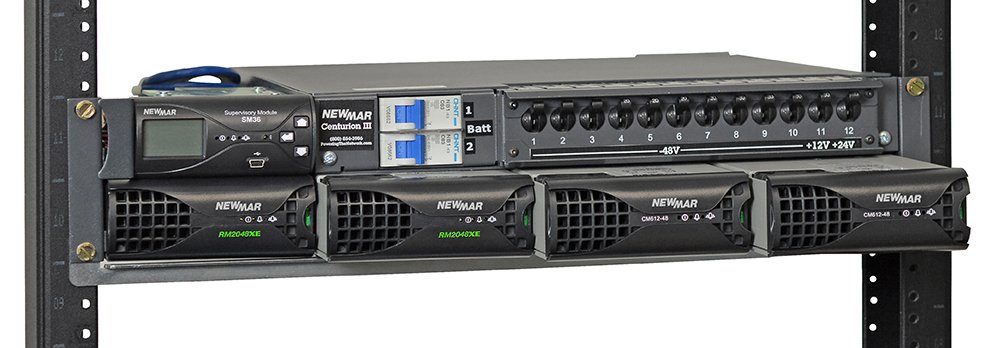

Rack mount Centurion III N+1 Redundant Rectifier DC Power System and DC-DC Converter, 12V DC, 24V DC and 48V DC at one time fully integrated by Newmar Powering the Network



Modular DC Power System




Nemwar Powering the Network with Power Module Series, rack mount DC Power supply, 12V, 24V and 48V DC, 560 - 2200 watts

Power Module Series DC Power System

Input: 115/230 VAC
Output: 12, 24, or 48 VDC, 560 – 2200 Watts

These versatile Rectifier Modules function as either power supplies or battery chargers for 12, 24 or 48 volt systems; positive, negative or floating ground. They may be employed singly or in combination, enabling the installer to scale the system anywhere from 500 to 10,000 watts per rack. Units may be paralleled for N + 1 redundancy and alarm contacts allow local or remote monitoring. An optional DC quick connect wiring kit allows easy replacement of modules without system shutdown.

Learn More About the Power Module Series DC Power Systems



 Self Contained Power System




Nemwar Powering the Network with Integrated Power System Series, rack mount DC Power supply with battery built-in battery back-up, 12V, 24V and 48V DC, 500 watts

 Integrated Power System with Internal Batteries

Input: 115/230 VAC
Output: 12, 24, or 48V, 500 Watts

The Integrated Power System (IPS) is a unique multifunction power supply which incorporates
built-in battery back-up and numerous power accessories within a single 2RU (3.5″) chassis, thus
eliminating time-consuming system integration, component sourcing and installation, while saving
precious rack space–ideal for any low-to-medium power application requiring AC fault tolerant operation.

Learn More About the Integrated Power System



Wall Mount DC Power System




Nemwar Powering the Network with Site Power System Series, cabinet or wall mount, 12V, 24V and 48V DC, 300 watts

Site Power System

Input: 115/230 VAC
Output: 12, 24, or 48V; 300 Watts

The Site Power System (SPS) series provides a complete DC power solution that integrates quickly with batteries, loads, and monitors. Available in 12, 24 and -48 volt, 300 watt configurations, the compact assembly contains: power supply with temperature compensated, automatic boost/float battery charge cycle; low voltage disconnect; and programmable alarm contacts. High operating temperature rating with convection cooling make the unit ideal for remote site shelters, railroad wayside bungalows, and pole mount enclosure applications, as well as private network base stations and microwave sites.

Learn More About the Site Power System





DIN-Rail DC Power System


Newmar Powering the Network with DIN Rail Mounted DC UPS and Power Systems, 12V, 24V and 48V DC, 5 - 35 amps

DIN-Rail DC Power System

Input: 115/230 VAC
Output: 12, 24, or 48V; 5 – 35 Amps

Powers Loads, Charges and Monitors Back-Up Battery, Ideal for Wireless System Transmitter/Enclosure Applications

Learn More About the DIN-Rail DC Power System



 Power Plants

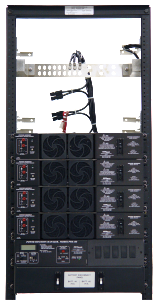

Newmar Powering the Network with Rack Power Systems, AC and DC, in 19 or 21 inch racks

RPS System

Input: 115/230 VAC
Output: 12, 24, or 48VDC, 500 – 3,000W

RPS Rack DC Power Systems feature PM Series rectifiers and PFM Controller.

Our engineering team offers comprehensive system integration services, including consultation, configuration, manufacturing, assembly, test, and delivery of fully integrated and functional DC power plants. We provide rapid delivery of complete systems, precisely tailored to meet your site requirements. See opposite page for basic menu of components offered in configuring your system.

Learn More About RPS DC Power Systems
