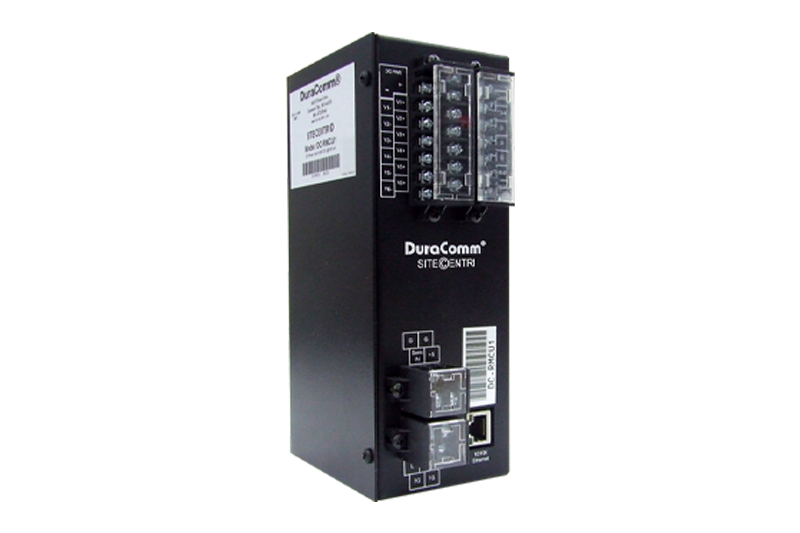

Centri Series SiteCentri

Site Centri

All-New, with Expanded Memory & Updated Software

Built-in Monitoring & Control

The Site Centri has become one of DuraComm’s most popular products since it’s debut back in 2014. The improved 2018 model features several improvements as we continue to respond to the needs of our customers. Our Site Centri series allows you to monitor, log, and control your equipment from anywhere with a computer or smartphone through a standard web page. First, we bring you the new and improved Site Centri with expanded memory and updated software allowing for more control and user customized alarms. The Site Centri has 6 isolated inputs analog inputs, 4 isolated digital inputs, and 4 isolated digital outputs which can withstand up to 500V to protect your system.

New Features

• Scheduled status emails
• Better SNMP integration. SNMPv3 compatible with more traps, gets, and sets
• Updated web page with improved user interface
• Updated data logging, log at specific intervals or continuously


  • HTTP self-generated web page
  • Plug-and-Play. No downloads or additional software required
  • User customizable inputs and outputs
  • Provides user configurable protections with notifications and alarms
  • User configurable alarm thresholds and delays with auto or manual recovery
  • Remote power cycling (on/off ) of circuit breakers, repeaters, routers, power supplies, etc.
  • Universal DC power input: 9 ~60 VDC
  • Flexible mounting: Rack (RM-DC-RMCU1) or DIN mount (standard)
  • Wide power input range 9 to 60 VDC
  • 6 DC voltage sensors
  • 1 DC current sensor with included shunt
  • 1 included DC current sensor
  • 1 AC voltage Sensor
  • 4 digital inputs for alarms, contact closures, and digital sensors
  • 4 digital outputs for alarms, contact closures, and digital sensors
  • 1 external temperature sensor with user selectable Fahrenheit or Celsius scales
  • Secure TCP/IP communication through a standard RJ-45, 10/100 ethernet
  • SNMP v1, v2, & v3 integration with MIB from DuraComm.com
  • SMTP/POP3 – email alerts
  • User controlled remote software update over TCP/IP
  • Data logging, time stamped, continuous logging, stored on internal SD card and downloadable .CSV file
  • Password protected web page with user defined permissions
  • Easy to use screw terminal blocks

Centri Series SiteCentri



Centri Series SiteCentri - Rack Mount Option



Product Specification DC-RMCU1 RM-DC-RMCU1
Output Current (Amps) 14  15
Output Voltage (VDC) 13.8 13.8
Input Voltage (VDC) 90-264 90-264
Internal Battery 12 Volts-7 Ah 12 Volts-14 Ah
Weight (lbs) 35 35
Dimensions (inches) 16 H x 14 W x 7 D 16 H x 14 W x 7 D
