Bus Bars


Rack Mount

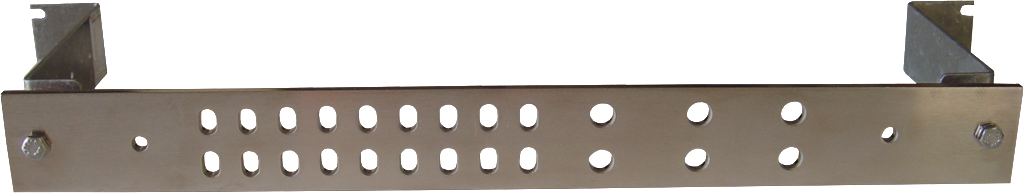

BBA-800 Rackmount Bus Bar by Newmar Powering the Network

BBA-800

  • 800 amp rated nickel-plated copper bus bar for use as heavy duty DC positive or negative connection point in rack installations
  • Mounts to rear of rack; adaptable to 19" or 23" rack widths
  • All mounting hardware, including isolated stand-offs and rear rack bracket
  • Multiple attachment holes in two sizes provided for single and dual hole lugs:
    • 18 ea. @ .312" x .500"
    • 6 ea. @ .437" round
    • 4 ea. @ .281" round
  • Dimensions: 19.5" x 2" x 1/4"
  • Projection from rack: 7.5"
  • Weight: 4 Lbs.

 California's Prop 65 warning website” width=




GB-19 Copper Rackmount Bus Bar by Newmar Powering the Network

GB-19

  • Copper bus bar for (unplated)
  • 100 amp rating
  • 14 ea. 1/4" landing points
  • Installer must supply insulating stand-offs
  • Tie bar provided for connecting to adjacent racks
  • Designed for 19" racks
  • Dimensions: 19.3" W x 0.75" H x 0.15" D
  • Weight: 1 Lb.



Download Bus Bars PDF Data Sheet


 Mobile Mount

Mobile mount bus bars by Newmar Powering the Network

Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16" studs on 1" centers in 1/4" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16" ring terminals.

  • Insulated base (reinforced nylonresin) with clear protective cover
  • Ideal power tie point when adding batteries, electonics and accessories to vehicles



Model Qty. of 5/16” Studs Size
BB-2 2 3-1/16” x 1 1/2”
BB-2/8 2 plus 8 - #8 screws 6-1/16” x 1-1/2”
BB-5 5 6-1/16” x 1-1/2”
BB-8 8 9-1/16” x 1-1/2”



Download Bus Bars PDF Data Sheet
