Terminal Strips & Buss Bars


 Bus Bars

Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16″ studs on 1″ centers in 1/4″ thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16″ ring terminals.

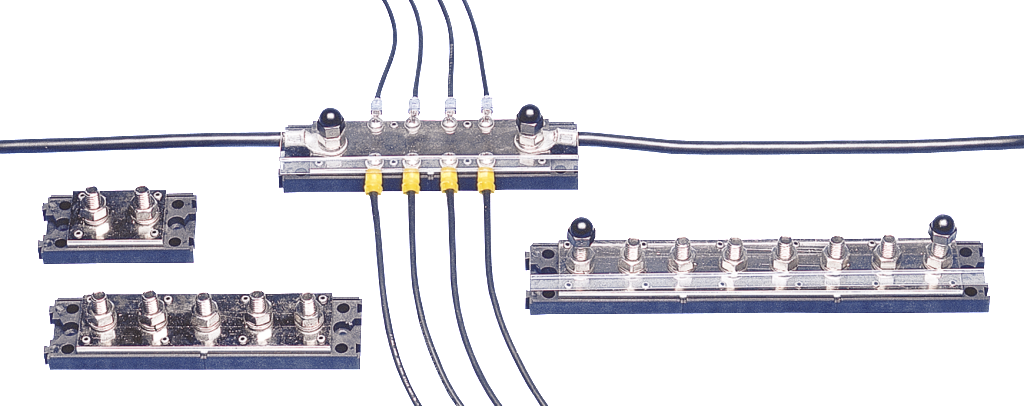

Mobile_Mount_Buss_Bars

Model Qty. of 5/16” Studs Size
BB-2 3 2 1/16” x 1 1/2”
BB-2/8 2 plus 8 – #8 screws 6-1/16” x 1-1/2”
BB-5 5 6-1/16” x 1-1/2”
BB-8 8 9-1/16” x 1-1/2”



Terminal Strips

  • Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4″ centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass.
  • Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either #8 or #10 mounting screws, and no conductive parts in the base are exposed to the mounting surface.
  • # 8 screw terminals
  • Bus bars rated to 100 amps
Terminal_Strips_3
Terminal_Strip_2





Model Total # of Base Terminals Size
TS-2×4 8 3-1/16” x 1-1/2”
TS-2×8 16 6-1/16” x 1-1/2”






Connector_StripsConnector Strips

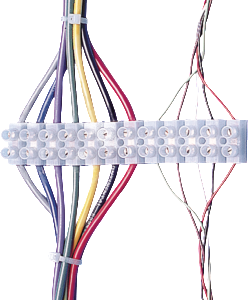

Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel “finger” compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage. Same connector strip used in BX Series boxes.

3 Sizes ranging from 6 to 16 gauge. Strips are easily cut to meet wiring requirements and space limitations.



Model # of Terminal Pairs Max Wire Gauge Max Amps* Size (L X W X H)
CS-1 12 16 6 3.75” x .675” x .5”
CS-2 12 14 10 4.5” x .75” x .75”
CS-3 12 12 16 5.5” x .875” x .8”
*Per set of terminals



Download Data Sheet (PDF)
