Rectifiers – Power Supplies

AC-DC



Voltage/Power:
120/240 VAC Input
12, 24, 48 VDC Output
150-1000 Watts

Components:
Rectifiers
Battery Chargers
Power Modules
Power Management
Power Supplies

Configurations:
Rack Mount
Wall Mount
Desktop



Rack Mount Rectifiers and Management Components




Powering the Network with Rackmount DC Power Supply Power Module Series, 12V, 24V, and 48V DC, 560 - 2200 watts by Newmar

Power Module

Input: 120/230 VAC
Output: 12, 24 or 48 VDC, 560 – 2200 Watts

These versatile Rectifier Modules function as either power supplies or battery chargers for 12, 24 or 48 volt systems; positive, negative or floating ground. They may be employed singly or in combination, enabling the installer to scale the system anywhere from 500 to 10,000 watts per rack. Units may be paralleled for N + 1 redundancy and alarm contacts allow local or remote monitoring. An optional DC quick connect wiring kit allows easy replacement of modules without system shutdown.

Learn More About the Power Modules Series





Power_Function_Manager

Power Function Manager

Input: 12, 24 or 48 VDC
Total Current Capacity: 500A

The Power Function Manager is a system integrating component which converts ordinary power supplies (or Power Modules) into a fully integrated and multifunctional power system. The unit provides for control, monitoring, paralleling and protection of 12, 24 or 48 VDC, positive negative or floating ground power sources.

Learn More the Power Function Manager





Powering the Network with the Integrated Power System Series DC power supplies, 12V, 24V and 48V, 11- 40 amps with internal battery back-up by Newmar

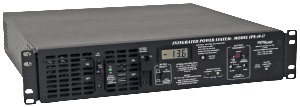

Integrated Power Systems

Input: 115/230 VAC
Output: 12, 24, or 48 VDC
11 – 40 Amps with Internal Battery

The Integrated Power System (IPS) is a unique multifunction power supply which incorporates built-in battery back-up and numerous power accessories within a single 2RU (3.5″) chassis, thus eliminating time-consuming system integration, component sourcing and installation, while saving precious rack space–ideal for any low-to-medium power application requiring AC fault tolerant operation.

Learn More About the Integrated Power System Series



Mobile, Wall Mount, and Desktop Power Supplies




Heavy Duty Power Supply Series, Wall Mount, Mobile Mount and Bench Mount, 12V DC and 24V DC, 5 amps to 35 amps by Newmar Powering the Network

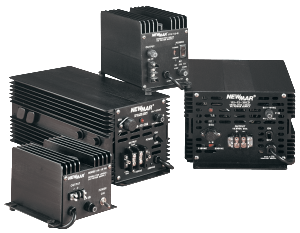

Power Supplies – Heavy Duty Series

Input: 115/230 VAC
Output: 12 or 24 VDC, 5 – 35 Amps

These super-rugged DC supplies are ideal for powering 12 and 24 volt communication equipment in base stations, remote sites and mobile communication applications where reliability is essential. The proven linear circuit design provides pure noise free output and long service life.

Learn More the Heavy Duty Power Supplies Series





Power-Pac Power Supply Series with battery back-up by Newmar Powering the Network, 12V DC, 5 amps output, 7 amp-hour to 14 amp-hour battery back-up

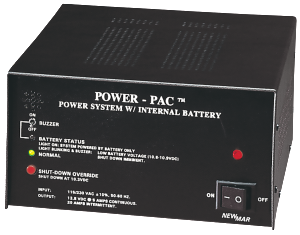

Power-Pac Series

Input: 115/230 VAC
Output: 12 VDC, 5 Amps
Battery Back-up: 7 – 14 A/H

This 12 volt, 10 amp power supply features built-in back-up batteries which are charged during normal operation and then continue to power radios when AC power is lost. Choose 7 or 14 amp-hour battery capacity.

Learn More About the Power-Pac Series





Powering the Network with Wall or Table Mounted Stand-Alone Unity Rectifier Power Supply, 24V and 48V DC, 3- 6 amps

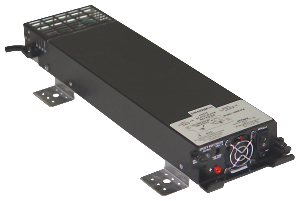

Unity Stand-Alone Rectifier Series

Input: 115/230 VAC
Output: 24 or 48 VDC
3 – 6 Amps, 150 Watts

For applications that do not require rack-mounting or redundancy, the Unity is available as a stand-alone rectifier. A versatile flange permits a myriad of mounting options, such as on the side of rack rails, inside cabinets, on walls or under shelves, maximizing use of restricted spaces.

Learn More About the Unity Stand-Alone Rectifier Series





Powering the Network with Cabinet or Wall Mount Site Power System, a 12V, 24V, and 48V DC Power system, 6 - 20 Amps

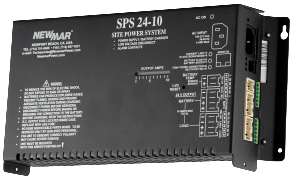

Site Power System

Input: 115/230 VAC
Output: 12, 24, or 48V, 250 – 500 Watts

The Site Power System (SPS) series provides a complete DC power solution that integrates quickly with batteries, loads, and monitors. Available in 12, 24 and -48 volt, 300 and 475 watt configurations, the compact assembly contains: power supply with temperature compensated, automatic boost/float battery charge cycle; low voltage disconnect; and programmable alarm contacts. High operating temperature rating with convection cooling make the unit ideal for remote site shelters, railroad wayside bungalows, and pole mount enclosure applications, as well as private network base stations and microwave sites.

Learn More About the Site Power System Series





Emergency_Relay_Charger

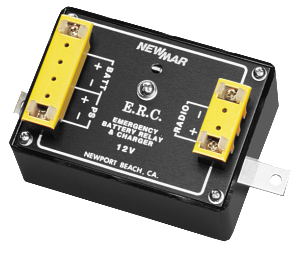

Emergency Relay/Charge – ERCs

The E.R.C. allows emergency battery tie-in to a radio system that is normally operated by a power supply.

Learn More About the Emergency Relay/Charger Series
