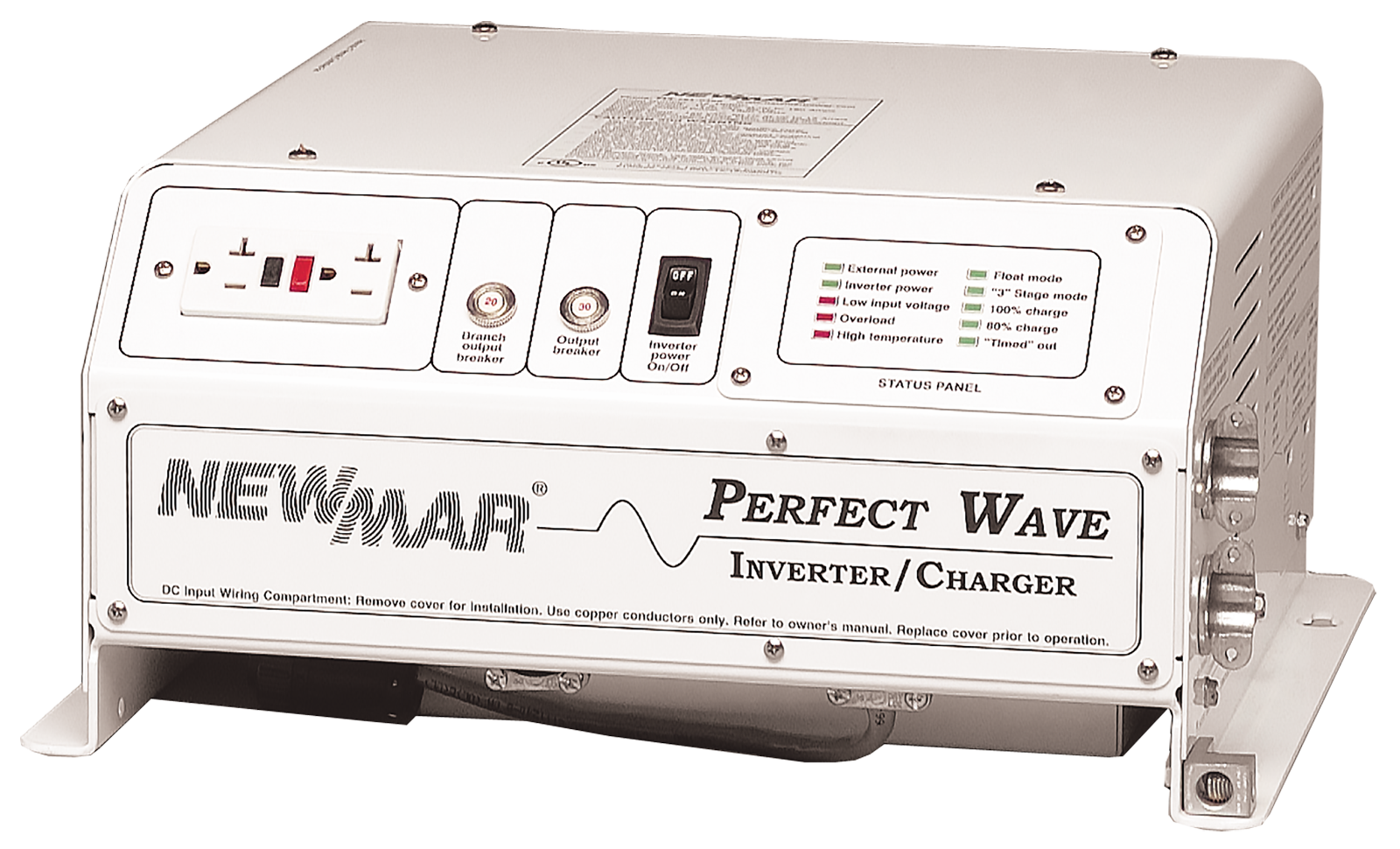

Inverter Charger – Mobile Mount

These inverter-chargers deliver pure, sinusoidal AC for flawless operation of all appliances and sensitive electronics and contain charger to replenish battery when AC is present.



Features

  • Generates “Perfect Wave” 120 VAC for powering highly input-sensitive computers, electronic controllers/processors
  • Built-in high output three stage, temperature compensated charger for rapid battery bank replenishment – programmable for gel-cell, lead-acid or AGM battery type with amp-hour capacity selector
  • Models available for 12 and 24 volt systems Internal charger is activated by an autommatic transfer relay when external AC power is available. Optional Battery Integrator permits charging of multiple banks
  • Large DC input terminal blocks and front panel GFCI protected outlet receptacles. AC output from the inverter may also be hard-wired
  • Operation clearly displayed with front panel status indicators-optional remote panel available
  • Numerous safety and circuit protections: short circuit, over load, over-temperature, ground fault protection, output circuit breaker
  • Thermally controlled cooling fan prolongs life of components
  • Automatic low voltage shutdown circuit prevents damage to batteries due to over-discharge when using inverter function
  • Heavy duty powder coated aluminum construction and polyurethane coated internal circuitry—built to last in the harsh industrial environment
  • UL listed with full two year warranty



Model 12-1800IC 12-3000IC
Inverter Output:
Watts (Surge) 4000 6500
Watts (Cont.) 1,800 3,000
Wave Type PS PS
Inverter Input:
VDC 11 – 14 11 – 14
Max. Amps 180 300
Charger Input:
Max. Amps 15 20
Charger Output:
Max Amps @ V [email protected] [email protected]
Case:
Case Size Ref. I-2 I-3
Weight (Lbs./Kgs) 54/25 75/35
Model 24-2200IC 24-4800IC
Inverter Output:
Watts (Surge) 6,500 14,000
Watts (Cont.) 2,200 4,800
Wave Type PS PS
Inverter Input:
VDC 22 – 28 22 – 28
Max. Amps 110 240
Charger Input:
Max. Amps 15 40
Charger Output:
Max Amps @ V [email protected] [email protected]
Case:
Case Size Ref. I-2 I-3
Weight (Lbs./Kgs) 54/25 75/35



Case Inches Centimeters
H W D H W D
I-2 7.5 16 15.5 19.1 40.6 39.4
I-3 10 17 16 25.4 43.2 40.6

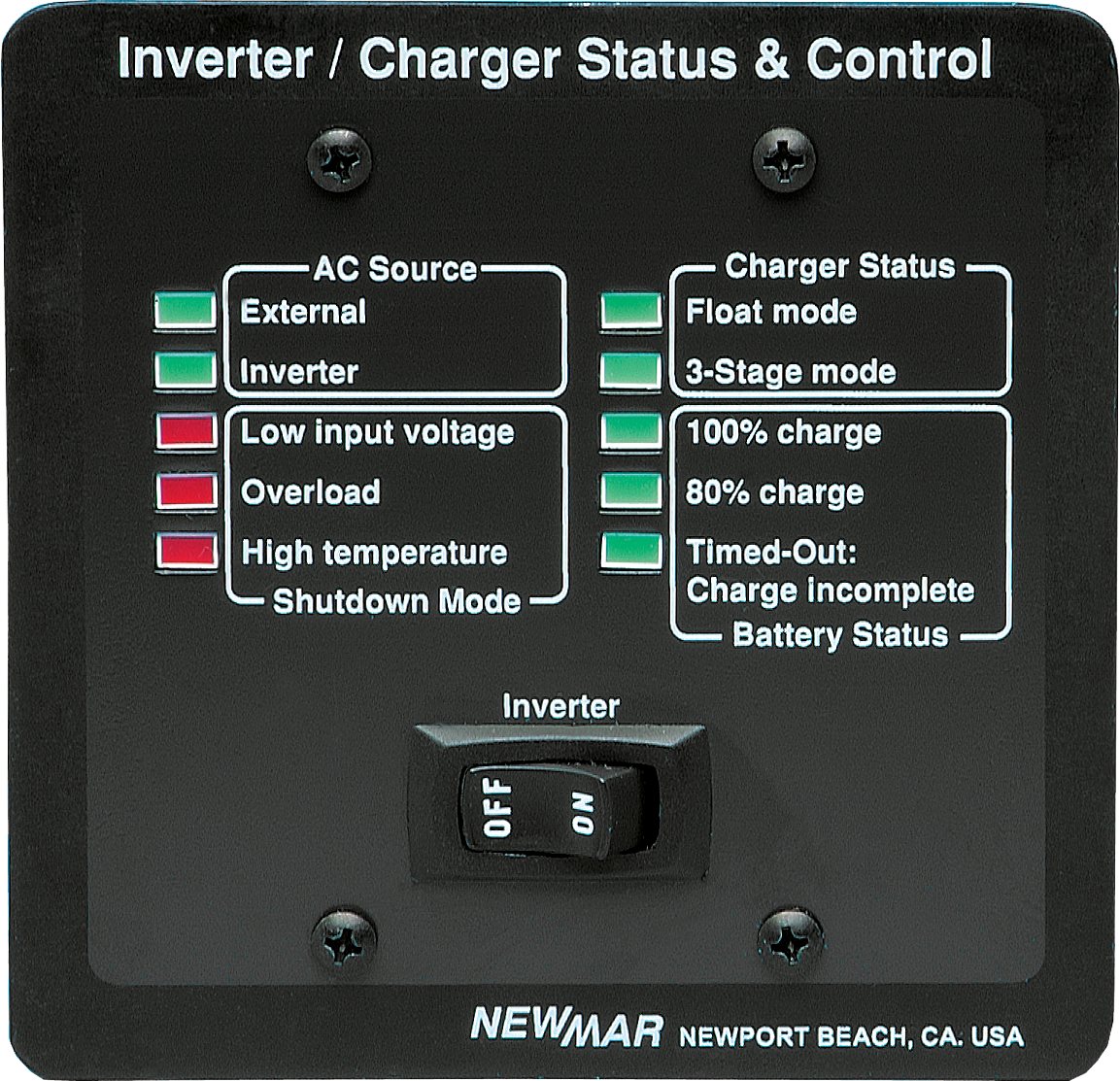

Optional Remote Control and Indicator Panel

ICR

Model: ICR-2 (Specify 25 or 50 feet of wire length)
