12 To 24V Step-Up DC-DC Converters
These “UP” converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:
In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.
The Isolated Series allows compatibility between positive and negative ground systems, for example installing negative ground 24V electronics on a 12V floating ground aluminum vessel. The isolated series is also a good choice for dual voltage system where noise and interference is an issue. Its input/output partitioning circuit prevents noise on the 12 volt system from being transmitted to the 24 volt side.

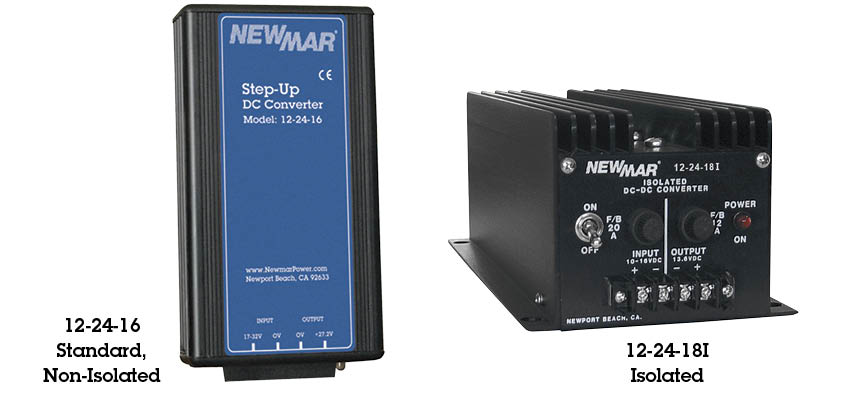

Standard, Non-Isolated Series
- Intended for use on negative ground systems
- 10 -15 VDC input range
- Available in 7, 16 and 25 amp outputs
- Current limited, voltage spike suppression, automatic thermal shutdown and recovery
Isolated Series
- Allows positive/negative ground compatibility between 12V battery and 24V accessories
- Wide range input, 10 – 16V, regulates to 24.5V
- Superior noise reduction
- Input/output isolation 250VDC
- Heavy duty powder coated aluminum case
- Available in 6 and 18 amp outputs
- Anodized aluminum case
- Available on special order as battery charger
| Model | Input voltage |
Output voltage |
Output Amps Intermittent |
Output Amps Continuous |
Case Size |
Weight | |
| Lbs | Kg | ||||||
| Standard – Non-Isolated | |||||||
| 12-24-7 | 10-15 | 27.2 | 7 | 7 | C-1 | 1.4 | .64 |
| 12-24-16 | 10-15 | 27.2 | 16 | 16 | C-2 | 3.55 | 1.61 |
| 12-24-25 | 10-15 | 27.2 | 25 | 25 | C-3 | 4.1 | 1.86 |
| Isolated | |||||||
| 12-24-6I | 10-16* | 24.5 | 6 | 4 | C-4 | 6 | 2.7 |
| 12-24-18I | 10-16* | 24.5 | 18 | 10 | C-5 | 12 | 5.5 |
| *11.5 VDC min. start-up voltage, then operates @ 10-16 VDC from 1 amp min. to full load | |||||||
Case Size
| Case | Inches | Centimeters | ||||
| H | W | D | H | W | D | |
| C-1 | 3.5 | 3.5 | 1.75 | 8.9 | 8.9 | 4.5 |
| C-2 | 4.25 | 5.9 | 14.0 | 10.8 | 15.0 | 35.6 |
| C-3 | 6.0 | 6.8 | 16.5 | 15.2 | 17.3 | 41.9 |
| C-4 | 4.25 | 5.9 | 14.0 | 10.8 | 15.0 | 35.6 |
| C-5 | 6.0 | 6.8 | 16.5 | 15.2 | 17.3 | 41.9 |
Specifications Standard
Standard, Non-Isolated
Input: 10 – 15V DC
Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
Ripple: <100mV P-P
Regulation: +/- 5% Line/Load
Duty Cycle:
Intermittent: 2 minutes, 20% duty
Continuous: 24 hours, 100% duty
Operating Temp: -25˚ – 30˚ C, derate linearly from 30 to 0% @ 80˚ C
Mechanical
- Efficiency: 93% – Typical.
- Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
- Front panel terminal block
- Output indicator: Green LED
Specifications Isolated
Isolated
Input: 10 -16V DC
Output: 24.5 VDC
Ripple: 150 mV P-P maximum
Regulation: 2% Line/Load
Duty Cycle Ratings:
Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating
Continuous: 24 hours, 100% duty
Idle Current: Less than 50 mA
Operating Temp: 0˚ – 50˚ C, derate linearly from 100% @ 40˚ C, to 50% @ 50˚ C
Switching Frequency: 70 Khz.
Efficiency: 85% – Typical.
Isolation – Output/Chassis; Input/chassis: 250 VDC
Mechanical
- Anodized aluminum heat sink case
- Front panel terminal block
- Heavy duty mounting flange
- Conformal coated PC board
Options/Factory Modifications
- Operation as a battery charger (contact factory)
- Parallel/redundant operation (contact factory)
- High vibration mounting kit
- Non-standard output voltage (contact factory)
