RPS_Rack_Power_SystemRPS Power Systems

RPS Rack Power Systems feature PM Series Rectifiers and PFM Controller.

Our engineering team offers comprehensive system integration services, including consultation, configuration, manufacturing, assembly, test, and delivery of fully integrated and functional power plants. We provide rapid delivery of complete systems, precisely tailored to meet your site requirements. See opposite page for basic menu of components offered in configuring your system.

Download Datasheet (PDF)

Project Consultation

The process begins with a comprehensive analysis of your project’s power requirements, offering comprehensive solutions based on all relevant factors, including:

  • Load requirements and tolerances
  • Site AC power considerations
  • Hot swap and hot standby configuration
  • Co-location compatibility
  • Fault tolerance/redundancy
  • Back-up battery run time calculations
  • Power distribution requirements
  • Remote monitoring and alarming

Engineering and Configuration

A comprehensive project proposal with a detailed diagram of the proposed custom power system is submitted to you for approval.

Rack Assembly

All necessary components are installed and wired in racks or cabinets according to the particular site requirements. These components are typically manufactured and stocked by NEWMAR, thus assuring high reliability and short lead times for system delivery.

Testing

Each rack component undergoes rigorous “burn-in” testing individually, then the assembled rack system is again fully tested under simulated site load and function conditions to ensure maximum reliability.

Documentation

Custom user manuals are provided with each system, consisting of detailed operation and troubleshooting instructions for each system component, complete schematic diagrams.

Shipment

Each rack system is rigidly secured to a custom-built shipping skid and air ride trucked directly to your installation site.

After Sale Support

A duplicate system file, including detailed photo of the assembled power plant, is maintained at the
factory in order to provide ongoing technical support of the system, as needed.




Select from the following components to configure your system.

Power Modules

Click Here For Specifications

Power-Module

Power Modules
Quantity Installed Total Amps N+1Amps
12 Volt
PM-12-40 2 40 40
3 72 40
4 108 40
5 180 40
6 216 40
PM-12-80 2 80 80
3 144 80
4 288 80
5 360 80
6 432 80
24 Volt
PM-24-20 2 22 20
3 36 20
4 54 20
5 72 20
6 90 20
PM-24-35 2 35 35
3 63 35
4 94.5 35
5 126 35
6 157.5 35
48 Volt
PM-48-20 2 20 20
3 36 20
4 54 20
5 72 20
6 90 20
PM-24-50 2 50 50
3 90 50
4 135 50

Power Function Manager – PFM-400

Click Here For Specifications

Power_Function_Manager

Provided Functions:

  • Low Voltage Disconnect
  • Metering
  • Rectifiers and Battery Tie Points
  • Distribution circuit breakers

 Options

DST-20A

Additional Distribution Panel


Batteries & Accessories

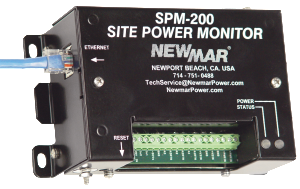

Site Power Monitor 3


Remote Monitoring
