DC-DC Converters
Voltage/Power Range: 12, 24, 48, 72, 110 VDC Input, 12 or 24 VDC Output, 3 – 50 Amps
Configurations: Isolated/Non-Isolated, Step-Up, Step-Down, Stabilizers, Battery Charger, Rack Mount, Mobile, Wall Mount, Desktop
Rack Mount DC-DC Converters
Rackmount DC Converter
Input: 24 or 48 VDC
Output: 12, 24, or 48 VDC, 15 – 30 Amps
Communication sites require isolated DC Converters to provide excellent voltage regulation, low noise, and high efficiency voltage conversion. Reliability is vital under continuous duty operation and high ambient temperatures.
These units accept a wide input range at 24 or 48 VDC nominal, positive or negative ground, and produce pure 12, 24, or 48 volt power. The solid state circuitry is conservatively designed and semi-conductors are selected and tested to withstand 200% of normal operating power.
Modular DC-DC Converter System
Input: 24 or 48 VDC
Output: 24 or 48 VDC, 1500 – 3000 Watts
Convert 48 to 24 or 24 to 48 volts with this compact, high power density (1RU) DC converter system. Wide range input maintains well regulated (isolated) output even when source voltage goes low. Multiple power bays accept 1500 watt converter modules allowing system scalability, load sharing and N+1 redundancy for high reliability. Built-in remote monitoring by Form C alarm contacts alerts operators to major and minor fault conditions.
Mobile Mount DC-DC Converters

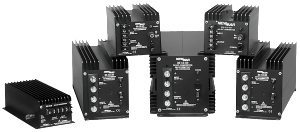

Standard Series
Input: 24 or 48 VDC, Negative Ground
Output: 12 or 24 VDC, 3 – 50 Amps
Convert 20-50 VDC input to 12 or 24 VDC negative ground output for powering communication/navigation equipment, on negative ground systems. (see Isolated series for positive ground applications.) Ideal for powering voice and data transceivers in mobile applications.

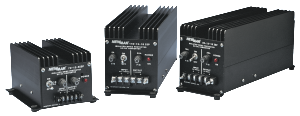

Isolated & Spike Protected Series
Input: 24, 36, 48, 72 or 110 VDC, Positive or Negative Ground
Output: 12 or 24 VDC, 6 – 35 Amps
Isolated and Spike protected series converters offer the benefits of an isolated converter plus protection against line transients and voltage spikes typically caused by large DC motors and switching transients often encountered on forklifts, locomotives and light rail applications. A transient energy circuit clamps input spikes to a safe level, protecting both the converter and the powered equipment. Rugged case construction and internal components designed for severe vibration applications.
Voltage Stabilizers, Mobile Mount

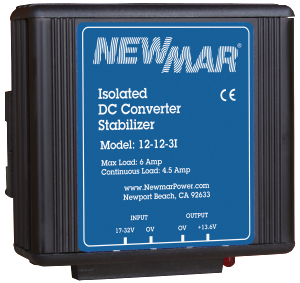

Stabilizer Series
Input: 12 or 24
Positive or Negative Ground
Input Output
12 to 12
24 to 24
3 – 35 Amps
Feed sensitive electronics with proper voltage regardless of battery condition. These stabilizing converters provide continuous, precisely regulated output over the entire range of a battery’s usable voltage. This prevents subjecting loads to fluctuating input voltage which can cause shutdown, diminish performance and possibly damage sensitive circuitry.
Isolated Series
Input: 12, 24 or 48 VDC, Positive or Negative Ground
Output: 12 or 24 VDC, 3 – 35 Amps
This series provides voltage conversion as well as input/output isolation, allowing use of negative ground electronics on off-highway vehicles which typically employ positive ground battery systems. May also be used as a voltage stabilizer and filter for sensitive equipment.
