Custom Electrical Panels

From Concept To Completion In 2 Weeks
Send Us Your Sketch, We’ll Do The Rest!



  • Any Size, Shape, Graphics, Lettering or Language
  • Meters, Breakers, Switches
  • Fiber Optic Back Lighting
  • Pre-Wired and Ready for Installation

Contact Customer Support For More Information: 1-800-854-3906
kap@newmarpower.com



Custom Panel Templates – Accessory

Built as Shown or Customized to Any Specification.

AC/DC
8 Single Pole
19” Rackmount
Dimensions: 1.75” x 19

AD24

# AD24


AC
4 Double Pole
Dimensions: 17.75” x 3.25”

AD26

# AD26


120/240V AC
50 Amp Master with Ground Fault
Dimensions: 5” x 7”

A28

# A28


12 VDC Console
Switch Panel
6 Rocker Switches
Dimensions: 3.9” x 8.7”

D18

# D18


120/240V AC
Source Selector Switch
Digital Volt, Amp, Frequency Meter
12 Single Pole
Dimensions: 8.5” x 11.25”

A10

# A10


120/240V AC
Three Pole Master, Source Selector Switch,
Analog Volt and Amp Meter
12 Single Pole
Dimensions: 13.75” x 10”

A12

# A12


120 or 240V AC
Three Pole Master/Slide Source Selector
Digital Volt, Amp, Frequency Meter
12 Single Pole or 6 Double Pole
Dimensions: 11” x 11”

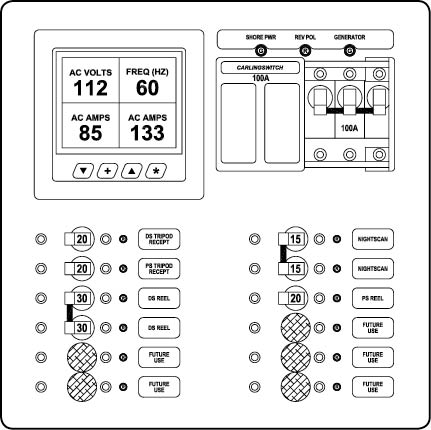

A14

# A14


120/240V AC
Three Pole AC Master,
Source Selector Switch,
Digital Volt, Amp, Frequency Meter
2 Double Pole, 16 Single Pole Main Loads,
4 Single Pole Inverter Loads
Dimensions: 20” x 20”

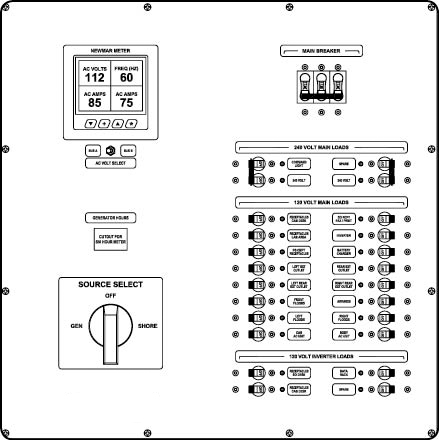

A16

# A16


120/240V AC
Double Pole Master
Digital AC Volt, Amp,
Frequency, kW Meter
21 Main Load Single Pole
7 Sub-Feed Single Pole
Dimensions: 14.5” x 12.75”

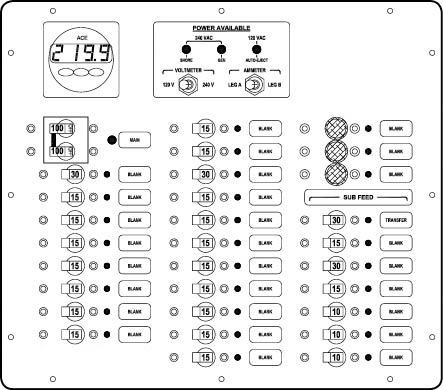

A18

# A18


120/240V AC
Three Pole Master/Slide Source Selector
Digital AC Volt, Amp, Frequency Meter
10 Double Pole, 20 Single Pole (Leg A),
20 Single Pole (Leg B)
Dimensions: 15” x 27.75”

A24

# A24


120V AC
Double Pole AC Master/
Slide Source Selector
Analog Volt & Amp Meter
12 Single Pole
Dimensions: 9” x 17”

A20

# A20


120/240V AC
Three Pole AC Master
Digital Volt, Amp, Frequency Meter
7 Double Pole,
13 Single Pole
Dimensions: 6.75” x 18.5”

A22

# A22


240V AC Subpanel
9 Double Pole
Dimensions: 12” x 5.5”

AD26

# A26


240V AC / 24V DC
AC Source Select Switch
Analog AC Volt & Amp Meters
27 Double Pole
DC Master
Analog DC Volt & Amp Meters
30 Single Pole
Dimensions: 21” x 22”

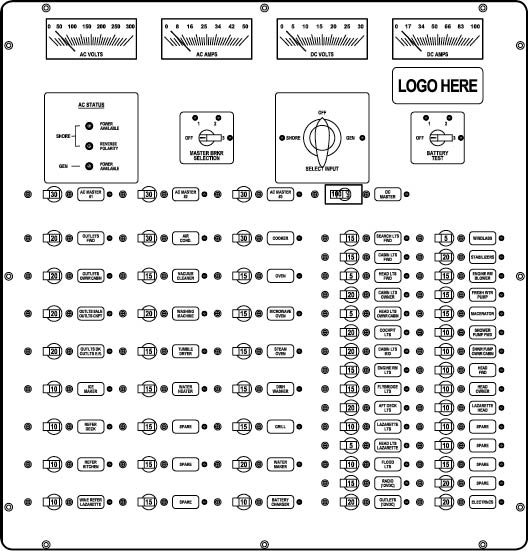

AD10

# AD10


120V AC / 24V DC
AC Master Digital AC Volt, Amp, Frequency, Meter
16 Main Load Single Pole, 6 Sub Feed Single Pole
DC Master
Digital DC Volt Meter
16 Single Pole
Dimensions: 12” x 21”

AD14

# AD14


240/120V AC / 12V DC
AC Master/Slide Selector
Analog AC Volt & Amp Meter
6 Double Pole 240V AC,
12 Single Pole 120V AC
DC
Analog Volt & Amp Meter
18 Single Pole
Dimensions: 23” x 11.8”

AD12

# AD12


120V AC – 12V DC
AC Master
Source Selector Switch
Digital Volt & Amp Meters
17 Single Pole
DC Master
Digital Volt & Amp Meter
34 Single Pole
Dimensions: 12” x 24”

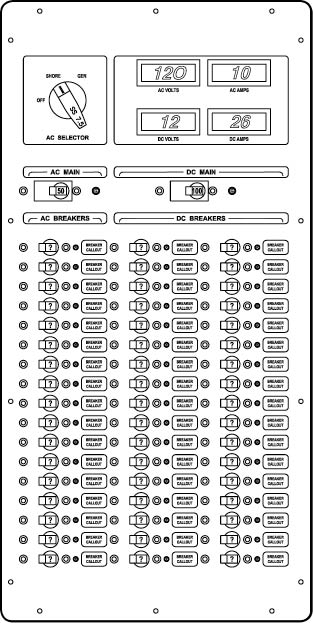

AD16

# AD16


120V AC – 12V DC
AC Master
Digital Volt-Amp Freq-Hour Meter
8 Single Pole
DC Master
Digital Volt Meter
8 Single Pole
Dimensions: 12” x 24”

AD18

# AD18


120V AC – 12V DC
AC Master/Source Selector
Analog AC Volt
& Amp Meters
7 Single Pole Branch Breakers
DC Master
Analog DC Volt Meter
7 Single Pole
Dimensions: 5.7” x 23”

AD20

# AD20


120V AC – 12V DC
AC Single Pole
DC Master
Digital Volt & Amp Meter
7 Single Pole
Digital Volt Meter
7 Single Pole
Dimensions: 10” x 10.5”

AD22

# AD22


12/24V DC
19 Single Pole Branch Circuits
Analog DC Volt & Ammeters
3 Battery Test Switch
Dimensions: 8.5” x 13.75”

D10

# D10


12/24V DC
Double Pole Master
5 Double Pole Branch Circuits
Dimensions: 14.5” x 9.5”

D14

# D14


12V DC
Analog DC Volt Meter
12 Single Pole
Dimensions: 10.5” x 7.5”

D12

# D12


12/24V DC
Digital DC Meter,
Double Pole Master,
20 Double Pole Branch Circuits,
Ground Fault Test Circuit*
Dimensions: 25” x 10”

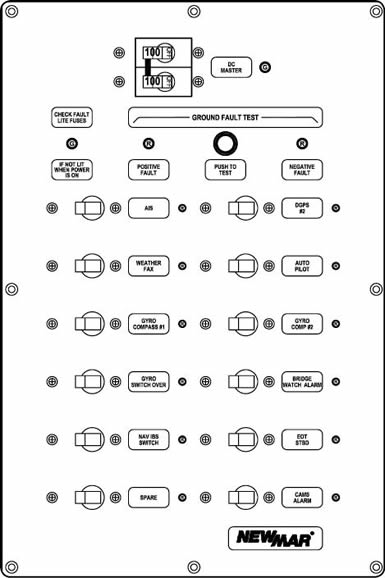

GF10

# GF10


12/24VDC
Double Pole Master,
12 Double Pole DC
Branch Circuits,
Ground Fault Test Circuit*
Dimensions: 10” x 15”

GF12

# GF12

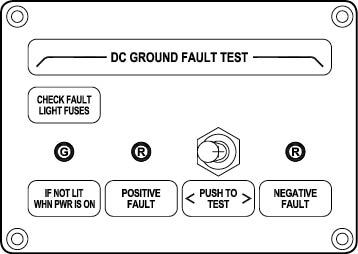

DC Ground Fault Test
Dimensions: 3.75” x 5.25”

GF14

# GF14


12/24VDC
Double Pole Master,
14 Double Pole Branch Circuits,
Analog Volt & Ammeters
Ground Fault Test Circuit*
Dimensions: 10” x 21”

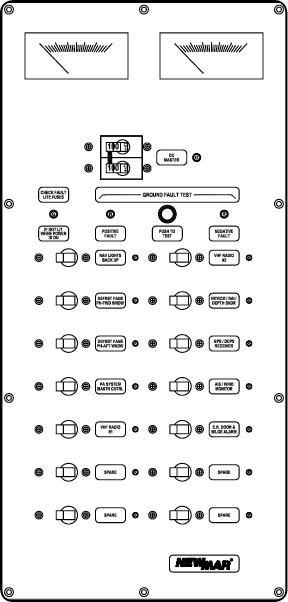

GF16
# GF 16


*For Isolated Systems
